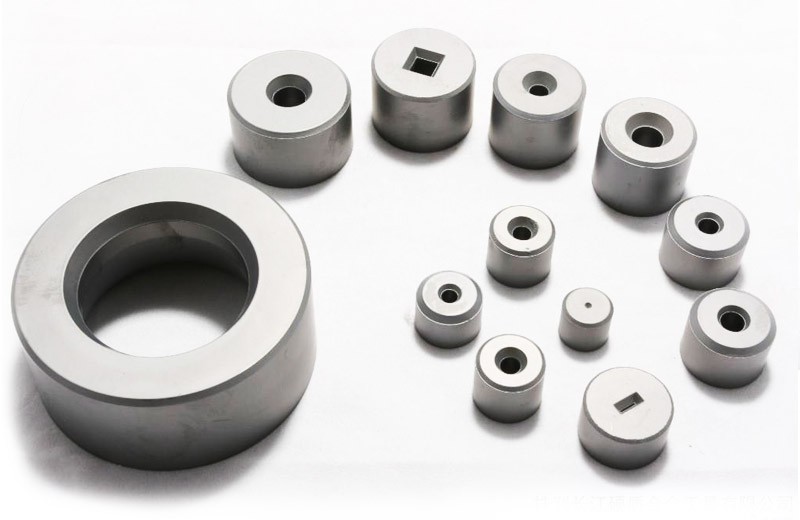

Carbide Drawing Dies

The role of each part of the drawing die:

1, the entrance area: from the entrance area to the work area is generally an arc transition, easy to import wire threading smoothly, and convenient drawing lubricant rotation.

2, lubrication area: the drawing material is lubricated, so that the wire transition easily.

3, compression area: linear working area can reduce drawing resistance, change point contact to surface contact, reduce friction and mold wear, deformation structure is more reasonable and stable. The inlet line thickened or thinned can be smoothly drawn.

4, sizing area: linear sizing area can ensure the exact diameter and finish of wire.

5, safety angle: safety angle can ensure that the wire is drawn without scars, to ensure the quality of the wire.

6. export area: export area can ensure smooth wire outlet.

Notes for mold use

1. The mold shape and size suitable for the stretched material must be selected, otherwise it will be easy to crack the mold.

2. The mold must be properly fastened along the drawing direction, without deflection to prevent uneven wear.

3. Lubricants have a great influence on the life of the mold. Choose appropriate lubricants and keep the mold in a clean state.

4. Do not knock or throw the mold.

YG6, YG8, YG15

YG6: Used for steel, non-ferrous metal and alloy wire or bar with tensile diameter less than 20.0mm under high stress; It is also suitable for stretching pipe with diameter less than 10mm.

YG8: It is used for steel, non-ferrous metal and its alloy wire or bar with diameter less than 50.0mm and pipe less than 35mm under high stress.

YG15: Can be used for high compression steel bar and steel pipe tensile hammer, punch and stamping die working under greater stress.
