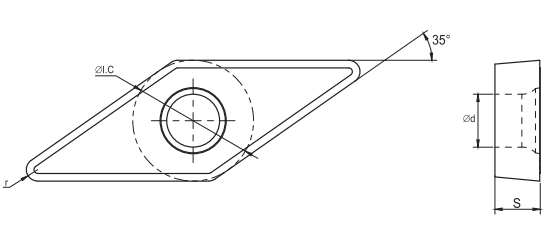

Length |
Size(mm) |
|||
|
IC |
S |
d |
r |
|
|
11 |
6.35 |
3.18 |
2.81 |
0.1-0.4 |
Product Information:

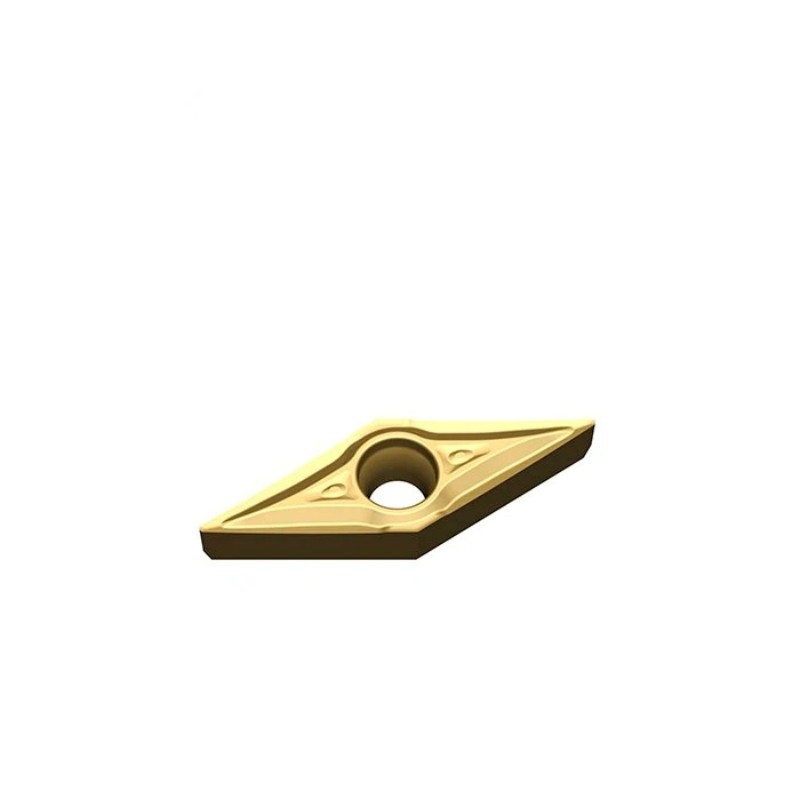

VCGT Turning Inserts.V -quadrilateral shape of turning insert - rhombic (35°)
C - Insert with clearance under main cutting edge (7°)
G - Tolerances and dimensions of carbide turning insert
T- Hole through insert and single sided chip-breaker
VCGT turning insert with very positive flank, positive rake angle and sharp cutting edge for optimum cutting performance. Sharp cutting edge for optimum cutting performance.Carbide construction for strength and rigidity. Heat and wear resistant properties for prolonged tool life.Cutting edges reliability, precision with a smooth surface.Corrosion resistance high brightness
Specifications:
|
Application |
Type |
Ap (mm) |
Fn (mm/rev) |
Grade |
|||||||||||
|
CVD |
PVD |
||||||||||||||
|
VK4215 |
VK4315 |
VK4225 |
VK4325 |
VK4235 |
VK4335 |
VK1005 |
VK1035 |
VK1328 |
VK1505 |
VR1525 |
VR1010 |
||||
|
Small Parts Machining |
VCGT110301- FS |
0.1- 1.5 |
0.02- 0.06 |
|
|
|
|
|
|
• |
O |
|
O |
|
|
|
VCGT110302- FS |
0.2- 2.0 |
0.05- 0.12 |
|
|
|
|
|
|
• |
O |
|
O |
|
|
|
|
VCGT110304- FS |
0.2- 2.5 |
0.08- 0.25 |
|
|
|
|
|
|
• |
O |
|
O |
|
|
|
Application:
The type of carbide grade and the coating on inserts is originally intended for turning aluminum, non ferrous (aluminum alloy, copper, wood, glass fiber, carbon fiber reinforced plastic and other nonferrous metals and alloys)
